How To Order Custom Factory Crimped P.T.F.E Hose Assemblies

5 Easy Steps!

1. Choose the hose size and style.
    310 -3 stainless PTFE, Bo Cover
    311 -3 stainless PTFE, Clear Cover
    312 -3 stainless PTFE, Black Cover
    410 -4 stainless PTFE, No Cover
    411 -4 stainless PTFE, Clear Cover
    412 -4 stainless PTFE, Black Cover
    610 -6 stainless PTFE, No Cover
    810 -6 stainless PTFE, No Cover

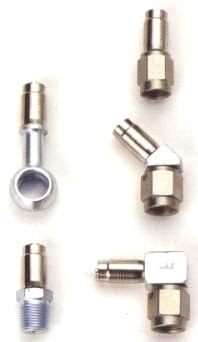

2. Choose the hose end for both ends.
    #1 for straight female swivel
    #2 for female 90° swivel
    #3 for 3/8" X 10mm banjo
    #4 for female 45° swivel
    #5 for 7/16" banjo
    #6 for 1/8" male pipe
    #7 for straight female swivel with
         blue aluminum nut
    #8 for straight female swivel with
         red aluminum nut

Please note: Not all combinations of hose ends are available for each size of hose. Consult your Fragola Performance Systems salesperson for complete details

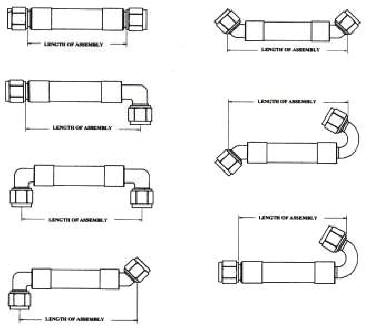

3. Choose your length (see diagram below for the proper method measuring).

4. Choose the "clocking" (positioning) of the hose ends when using 45s or 90s on both ends. (Hose end #1 is always straight up, which is called 12 o'clock).

5. The best bet is to FAX a sketch to: 860-621-1431 showing the position of both ends.

Example: If you wanted a 23" hose assembly with a 45° and a 90° end both clocked the same direction the part number would be
310-2-4-23"-12 X 12.
