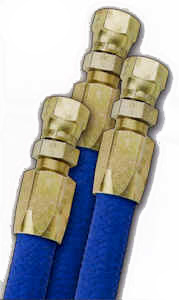

Power Steering Hose Ends
 |
Power steering systems pose their
own unique set of problems, and the best way to
manage the power steering system is with the FPS
power steering hose and fittings. The heart of
this system is a specially designed three braid
hose that will withstand the pressure spikes
caused by by engine RPM and the resistance on the
wheels. The specific zinc plated steel fittings
are easily assembled, and are reusable. |
| Power
Steering Hose Ends |
| 250106 |
-6 STR Hose End |
| 250108 |
-8 STR Hose End |
| 250110 |
-10 STR Hose End |
| 254506 |
-6 X 45° Hose End |
| 254508 |
-8 X 45° Hose End |
| 254510 |
-10 X 45° Hose End |
| 259006 |
-6 X 90° Hose End |
| 259008 |
-8 X 90° Hose End |
| 259010 |
-10 X 90° Hose End |
|
Power Steering Hose
| Plumbing
a automotive power steering system poses unique
set of problems. Pressure spikes caused by engine
RPM, and by loading of the wheels, requires a
special hose to prevent failures. Fragola
Performance Systems offers this hose from the
premier hose manufacturer in the USA. With working
pressures rated at over 2000 psi, this hose is up
to the task in any power steering applications. |
|
|
| Bulk
Part - (Specify Length) |
10
Foot |
20
Foot |
| 850006 |
851006 |
852006 |
| 850008 |
851008 |
852008 |
| 850010 |
851010 |
852010 |
Technical Specifications
|
Part - |
A-N |
I.D. |
O.D. |
Working Pressure |
Burst Pressure |
Min. Bend Radius |
| 850006 |
-6 |
.375" |
.680" |
2250 psi |
9000 psi |
3 1/2" |
| 850008 |
-8 |
.406" |
.770" |
2000 psi |
8000 psi |
3 1/2" |
| 850010 |
-10 |
.500" |
.920" |
1750 psi |
7000 psi |
4" |
|
 |
Replacement Sockets
For
Fragola Performance Systems 3000 Series Hose Ends
|
Red
Aluminum Replacement Sockets |
| 999004 |
-4 |
| 999006 |
-6 |
| 999008 |
-8 |
| 999010 |
-10 |
| 999012 |
-12 |
| 999016 |
-16 |
| 999020 |
-20 |
|
|
|
|
