1. Pick the hose size and style:

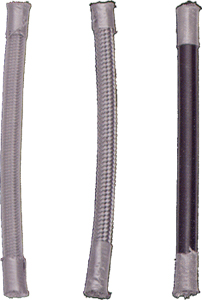

300 - #3 stainless PTFE no cover
311 - #3 stainless PTFE clear cover
312 - #3 stainless PTFE black cover
400 - #4 stainless PTFE no cover
410 - #4 stainless PTFE clear cover
412 - #4 stainless PTFE black cover

2. Pick the hose end type for both ends:
   #1 for straight female swivel
   #2 for 90 degree female swivel
   #3 for 3/8"/10mm banjo
   #4 for 45 degree female swivel
   #5 for 7/16" banjo
   #6 for 1/8" male pipe thread

3. Pick your overall length

4. Pick the "clocking" of the hose assembly (if using angled hose ends on both ends)

Hose end #1 is always straight up (12 o'clock)

Hose end will be whatever you need to make the connection without wrapping up the hose.

5. Make a sketch showing the length and which way the ends are aimed and FAX it to: 860-621-1431

If you wanted a 23" #3 hose end assembly with a 45 and 90 degree ends, both pointing the same way, you would order:
300-2-4-23"-12 X12
