900061 Vice Jaws
These magnetized aluminum vice jaws will hold your fittings
securely during assembly. Fits most vices with 3" jaws. |
900500 37 Degree Flaring Tool
The A-N specification calls for a 37 degree JIC flare in
order to seal hard line tubing on the flare of the matching
adapter. This economical flaring tool works on 3/16" through
5/8" diameter tubing. The faceted, hard chrome-finished cone
rolls out a perfect flare and burnishes the surface at the
same time. Large handle gives excellent leverage. |
900063 Teflon Tape 1/4" X 43' |
3/16" & 1/4" Lever Tubing Benders
Open slide slips over the tube at any point. Makes
smooth, tight radius bends up to 180 degree with minimum
effort. Does not score or flatten the tubing.
| 900501 |
3/16" Hard Line Bender |
| 900502 |
1/4" Hard Line Bender |
|

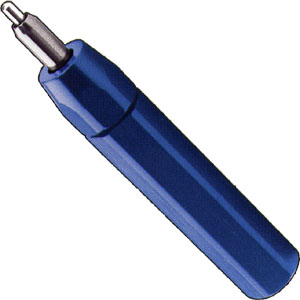

900065 -3 & -4 PTFE Braid Spreader
This handy tool makes it a snap to open up the
braiding in order to seat the "olive" over the PTFE
liner on -3 & -4 hose. This tool can also be used to
flush up against the end of the hose before
continuing the installation of reusable hose ends. |
Koul Tool
This handy composite device make installing the socket
over the cut end of the stainless hose a breeze. Simply open
the clamshell, insert the socket, clamp the Koul Tool in a
vise, or secure with Vise-Grip pliers. Push the hose through
the opening with a twisting motion, and the hard part of
hose assembly is done. Three sizes in a box, and they fit
all brands of A-N fittings.
| 900510 |
Koul Tool fits -4, -6 & -8 |
| 900511 |
Koul Tool fits -10, -12 & -16 |
|
|
Double Open End Wrench Set
Manufactured from heat treated aluminum, for the best
compatibly with aluminum fittings. Perfect for tightening
A-N hose ends in confined spaces. Wrenches have two
different angles on the openings for ease of use. These
wrenches come drilled for storage on a rack, thus freeing up
space in tool box. Sold in sets of five and individually.
| Double Open End Wrench Set |
| 900084 |
-4 Double Open End Wrench |
| 900086 |
-6 Double Open End Wrench |
| 900088 |
-8 Double Open End Wrench |
| 900090 |
-10 Double Open End Wrench |
| 900092 |
-12 Double Open End Wrench |
| 900096 |
-16 Double Open End Wrench |
| 900098 |
-20 Double Open End Wrench |
| 900100 |
Set of 5 -6 through -16 |
|
A-N
Wrench Set
Manufactured from heat-treated aluminum, this set is the
best insurance against marring the finish of your Fragola
Performance Systems
fittings during assembly. Custom short handle also helps
against overtorquing. Sold in sets of five, and also
available separately.
|
A-N Wrenches |
| 900006 |
-6 Wrench |
| 900008 |
-8 Wrench |
| 900010 |
-10 Wrench |
| 900012 |
-12 Wrench |
| 900016 |
-16 Wrench |
| 900050 |
Five Wrench Set |
|
|
900062
Hand Held Hose Shear
There are a number of methods for cutting the
stainless braided hose, but the quickest and easiest is the hand held hose shear. With one stroke,
hose up to -12 can be cut quickly and cleanly. Some
braid strands may need additional clipping with
side cut wire pliers. NOTE: Not for all types of
hose, as some multi-layer hose like power steering hose may
be too thick or tough. |

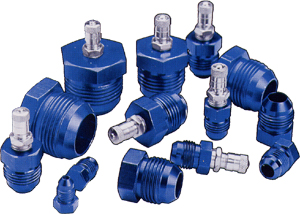

900060 Hose Test Kit
This economical pressure test kit is a must for every
toolbox. It allows the quick testing of your -3 through -16
hose assemblies. A compressed air source is needed to
pressurize the hose, plus a water bath to submerge and check
for leaks.
| Viton O-Rings
(Tests single hose assembly) |
| 900663 |
-3 |
| 900664 |
-4 |
| 900666 |
-6 |
| 900668 |
-8 |
| 900670 |
-10 |
| 900672 |
-12 |
| 900676 |
-16 |
| 900060 |
Complete Kit |
|
