Technical
Information
 |
|
NPT Threads |
|

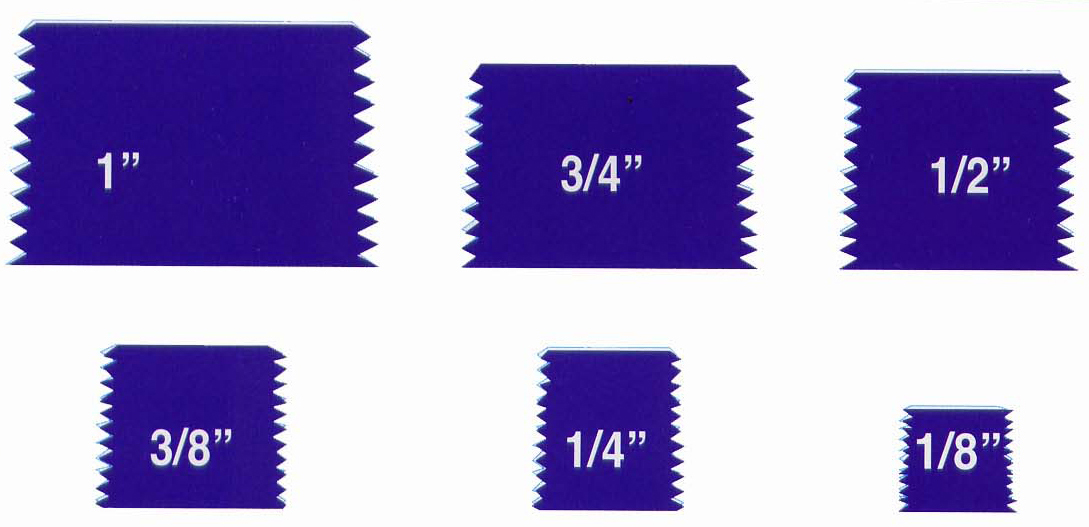

Use the profiles below to determine
the correct NPT thread before ordering. The
corresponding chart displays the pipe thread size,
the number of threads per inch, the inner diameter
of the fitting, and the closest AN thread. |
|
Pipe Thread Size |
Threads Per Inch |
Fitting I.D. |
Closest AN fitting size |
|
1/8" |
27 |
1/8" |
4 |
|
1/4" |
18 |
1/4" |
6 |
|
3/8" |
18 |
3/8" |
8 |
|
1/2" |
14 |
1/2" |
10 |
|
3/4" |
14 |
3/4" |
12 |
|
1" |
11.5 |
1" |
16 |
|
1 1/4" |
11.5 |
1 1/4" |
20 |
|
 |
|
A-N Threads |
| Use
the profiles below to determine the correct A-N
thread before ordering. The corresponding chart
displays the outer diameter of the metal tube and
thread size. |
|
A-N Size |
Metal Tube O.D. |
Thread Size |
|
3 |
3/16" |
3/8-24 UNJF |
|
4 |
1/4" |
7/16-20 UNJF |
|
6 |
3/8" |
9/16-18 UNJF |
|
8 |
1/2" |
3/4-16 UNJF |
|
10 |
5/8" |
7/8-14 UNJF |
|
12 |
3/4" |
1 1/16-12 UNJF |
|
16 |
1" |
1 5/16-12 UNJF |
|
20 |
1 1/4" |
1 5/8-12 UNJF |
|
Torque
Specifications
| Fitting Size |
Max. Torque in Foot Pounds |
Many people
over tighten the aluminum fitting on the adapter, which
distorts the 37 degree seat, and may cause leakage. Both the
threads and the seat surface should have a drop or two of
oil to smooth the tightening process. The maximum torque specifications are
listed here. (An alternate method of tightening is to bring the nut to "hand-tight" and
then rotate it another turn with the proper wrench.) |
| 3 |
8.75 |
| 4 |
11.5 |
| 6 |
16.25 |
| 8 |
29 |
| 10 |
35 |
| 12 |
45 |
| 16 |
70 |
| 20 |
85 |
Size Chart
|
A-N Thread |
Pipe Thread |
B-Nut Hex |
| A-N Size |
Tube Diameter |
Thread Size (S.A.E) |
Pipe Thread |
Threads Per Inch |
A-N Size |
Hex Diameter |
| -2 |
1/8" |
5/16-24 |
1/16" |
27 |
|
|
| -3 |
3/16" |
3/8-24 |
1/8" |
27 |
#3 |
1/2" |
| -4 |
1/4" |
7/16-20 |
1/4" |
18 |
#4 |
9/16" |
| -6 |
3/8" |
9/16-18 |
3/8" |
18 |
#6 |
11/16" |
| -8 |
1/2" |
3/4-16 |
1/2" |
14 |
#8 |
7/8" |
| -10 |
5/8" |
7/8-14 |
3/4" |
14 |
#10 |
1" |
| -12 |
3/4" |
1 1/16-12 |
1" |
11 |
#12 |
1 1/4" |
| -16 |
1" |
1 5/16-12 |
|
|
#16 |
1 1/2" |
| -20 |
1 1/4" |
1 5/8-12 |
|
|
#20 |
1 7/8" |
| -24 |
1 1/2" |
1 7/8-12 |
|
|
|
|
| -28 |
1 3/4" |
2 1/4-12 |
|
|
|
|
| -32 |
2" |
2 1/2-12 |
|
|
|
|
