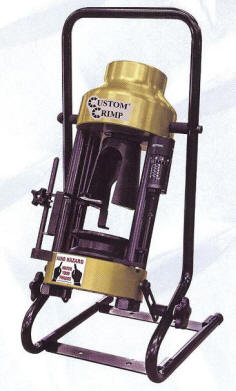

Crimp Machine
The best portable crimp machine available, anywhere. Custom
Crimp designed the D-100 Model to be the easiest to operate
whether you are a novice, or crimp hoses for your living.
-
The precision micrometer allows quick
setting and gives 100% repeatability time after time.
-
Removable pusher allows fast changes
between straight and angled fittings.
-
Inverted die allows the operator to
accurately position the fitting prior to the final
crimp.
-
Aluminum flanges and tubular frame make
this a truly portable unit.
-
Can be bench mounted with predrilled
holes in the base.
-

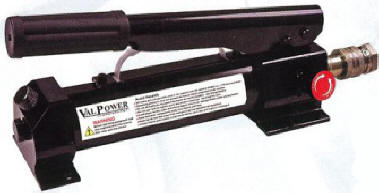

Hand pump allows the user to "go
anywhere" to make professional-quality crimp.s
|
 |
| 900200 |
Crimp Machine and Hand Pump (No Die
Sets) |
| 900201 |
-3 & -4 Dies for D-100 Machine
(.315"-.397") |
| 900202 |
-6 Dies for D-100 Machine
(.748"-.905") |
| 900204 |
-8 & -10 Dies for D-100 Machine
(.866"-1.023") |
| 900206 |
-12 & -16 Dies for D-100 Machine
(1.102"-1.258") |
| 900210 |
Optional, Pneumatic Pump-Requires
Air Source |
|
 |
N.H.R.A. & I.H.R.A. PRESSURE TEST
AND TAG
Both the N.H.R.A. and the I.H.R.A. require pressure
testing and printed certification on every line used in
their professional racing classes. Fragola Performance
Systems is set up to provide that service on existing
lines or on new assemblies from the factory.
|
|
| 900000 |
Pressure Test & Tag, Per Line |
|
